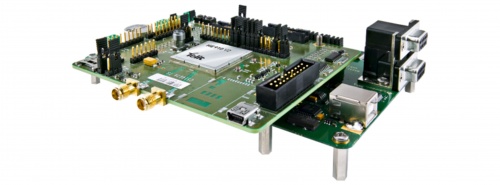

The Telit Evaluation Kit (EVK2) provides a robust, future-proof and flexible environment for rapid development of applications for the full range of GSM/GPRS, UMTS/HSDPA and CDMA module families, dramatically reducing time-to-market.
The kit is comprised of a motherboard, and an adapter board in which the relevant module is connected. This concept allows the EVK2 to be used across various form factors and product generations, both present and future.
The motherboard includes the basic interfaces, such as power input, SIM card holder, audio monitor outputs, RS-232, and USB 1.1, as well as a Reset button and power switch. The motherboard represents the recommended reference design for the module's peripheral circuitry. Jumper blocks on the motherboard define the routing of the serial interfaces, audio signals, and power supply. The PC or DTE controlling the module over the AT-command interface can be connected via USB or RS-232.
Adapter boards are available in different models to allow development for the desired module family (board-to-board or BGA solder). The set of basic interfaces found on by the motherboard. The set of interfaces specific to the module (e.g. antenna, general purpose inputs/outputs (GPIO), ADC/DAC, UART etc.) is found on the adapter board for connection to the user’s application, extension boards, or other development tools and measuring equipment.
Product Description

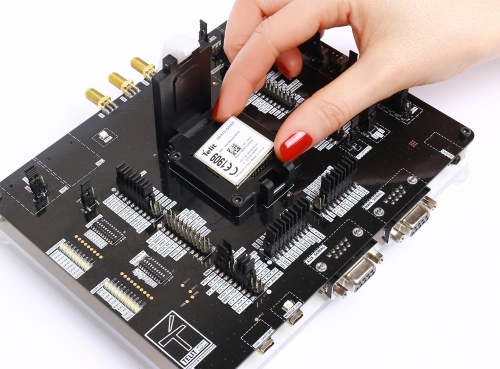

xE910-Prog Tool provides easy-programming function and flexible development & test enviorement to customer based on Telit GSM | GPRS, UMTS | HSPA, CDMA 1x | EV-DO and LTE xE910 Telit Module Family, significiantly reducing time-to-market.
xE910-Prog Toolincludes the basic interfaces such as power input, Dual-SIM card holder, Audio Headset 3.5mm Jack (Iphone and Samsung Phones compatible), 2 x RS232, 2 x USB, Reset and Power Buttons, Status&GPIO LEDs, Input&Control Slide Switches, Activation Jumpers and as well as Cellular | Diversity | GNSS Antenna Connectors.
Jumper blocks of xE910-Prog Tool define the rooting of Serial Ports, GPIOs, Audio channels, SPI Connections, Power Lines, I/O voltage Level selections, SIM selections, GNSS connections. The PC or DTE controlling the module over AT-command interface can be connected via RS232 and USB.
Key Benefits
xE910-Prog Toolis a solution designed for Telit Distributors, R&D Companies who need module FW update without assemblying, Programmers Engineers and developers who want to test all xE910 family functions. Tool can be used at very wide areas which Telit xE910-Family modules used and offer below advantages to the users: Program and/or update any module in Telit xE910-Family without assembly, Programming, Developing and Testing of Telit\'s current and future GSM|GPRS, UMTS|HSPA, CDMA 1x|EV-DO and LTE xE910-Family products in one platform, Debug and improve applications at HW and SW sides based on xE910 Family, Develop a first-pass proof-of-consept device for new applications, Make module ready with demanded FW before Assembly/Production Process.
Product Description
RHF0M301 is a 10 channel (8 x multi-sf + 1 x Standard LoRa + 1 x FSK) LoRa/LoRaWAN gateway and concentrator module.A 24PIN DIP straight connector is provided on the module, which allows users to connect the embedded board with the RHF0M301 and quickly develop the custom gateway.
