Pycom OEM - OEM Products

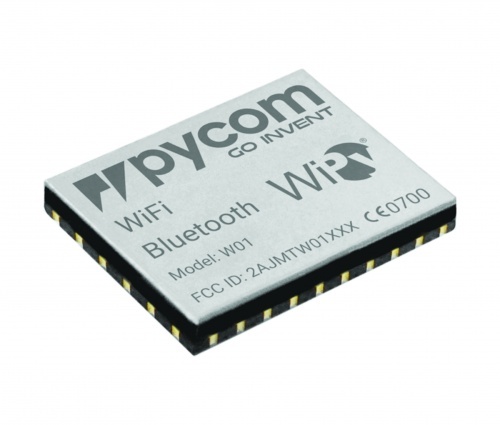

Introducing the W01 OEM Module. The tiny MicroPython enabled
Wifi & Bluetooth IoT development platform. With a 1KM
WiFi range, state of the art Espressif ESP32 chipset and dual
processor, the W01 is all about taking the Internet of Things to
the next level. Create and connect your things everywhere. Fast.
W01 Features
- Powerful CPU, BLE and state of the art WiFi radio.
- 1KM Wifi Range
- MicroPython enabled
- Fits in a standard breadboard (with headers)
- Ultra-low power usage: a fraction compared to other connected micro controllers
Processing
- Espressif ESP32 chipset
- Dual processor + WiFi radio System on Chip
- Network processor handles the WiFi connectivity and the IPv6 stack
- Main processor is entirely free to run the user application
- An extra ULP-coprocessor that can monitor GPIOs, the ADC channels and
control most of the internal peripherals during deep-sleep mode while only
consuming 25uA
Interaces
- 2 x UART, 2 x SPI, I2C, I2S, micro SD card
- Analog channels: 8x12 bit ADCs
- Timers: 4x16 bit with PWM and input capture
- DMA on all peripherals
- GPIO: Up to 24
Hash / encryption
- SHA, MD5, DES, AES
WiFi
- 802.11b/g/n 16mbps
Bluetooth
- Low energy and classic
RTC
- Running at 32KHz
Power
- - Voltage Input: 3.3V regulated
Security & Certifications
- SSL/TLS support
- WPA Enterprise security
- FCC - 2AJMTW01XXX
- CE 0700
Memory
- RAM: 4MB
- Flash Memory: 8MB
- Hardware floating point acceleration
- Python multi-threading

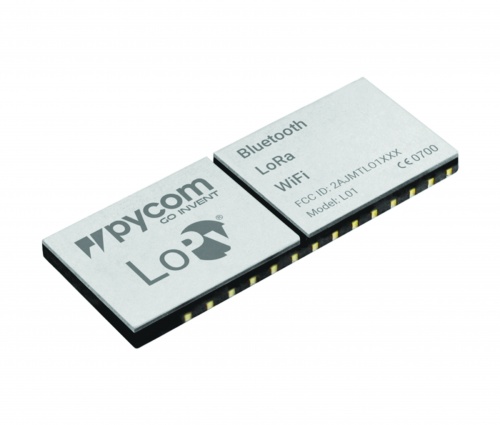

With LoRa, Wifi and BLE, the L01 OEM Module is the only
triple bearer MicroPython enabled micro controller on the
market today – the perfect enterprise grade IoT platform for
your connected Things. With the latest Espressif chipset the L01
offers a perfect combination of power, friendliness and flexibility.
Create and connect your things everywhere. Fast.
L01 Features
- Powerful CPU, BLE and state of the art WiFi radio. 1KM Wifi Range
- Can also double up as a Nano LoRa gateway
- MicroPython enabled
- Fits in a standard breadboard (with headers)
- Ultra-low power usage: a fraction compared to other connected micro controllers
Processing
- Espressif ESP32 chipset
- Dual processor + WiFi radio System on Chip.
- Network processor handles the WiFi connectivity and the IPv6 stack.
- Main processor is entirely free to run the user application.
- An extra ULP-coprocessor that can monitor GPIOs, the ADC channels and
control most of the internal peripherals during deep-sleep mode while
only consuming 25uA.
Interfaces
- 2 x UART, 2 x SPI, I2C, I2S, micro SD card
- Analog channels: 8x12 bit ADCs
- Timers: 4x16 bit with PWM and input capture
- DMA on all peripherals
- GPIO: Up to 24
Hash / encryption
- SHA, MD5, DES, AES
WiFi
- 802.11b/g/n 16mbps
Bluetooth
- Low energy and classic
RTC
- Running at 32KHz
Security & Certifications
- SSL/TLS support
- WPA Enterprise security
- FCC - 2AJMTL01XXX
- CE 0700
Memory
- RAM: 4MB
- Flash Memory: 8MB
- Hardware floating point
acceleration
- Python multi-threading

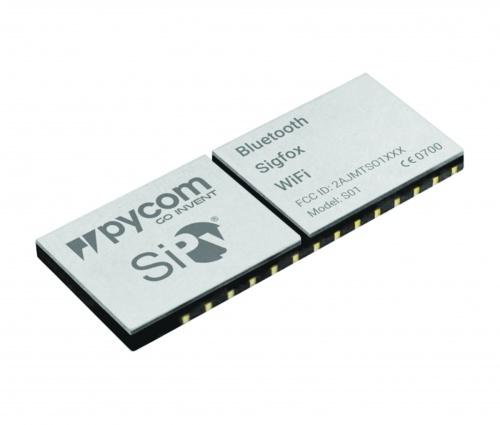

With Sigfox, WiFi and BLE, the S01 OEM Module is the latest
Pycom triple- bearer MicroPython enabled micro controller on
the market today – the perfect enterprise grade IoT platform
for your connected Things. With the latest Espressif chipset the
S01 offers a complete combination of power, friendliness and
flexibility. Create and connect your things everywhere. Fast.
S01 Features
- Powerful CPU, BLE and state of the art WiFi radio
- 1KM Wifi Range
- MicroPython enabled
- Fits in a standard breadboard (with headers)
- Ultra-low power usage: a fraction compared to other connected
- micro controllers
Processing
- Espressif ESP32 chipset
- Dual processor + WiFi radio System on Chip.
- Network processor handles the WiFi connectivity and the IPv6 stack
- Main processor is entirely free to run the user application
- An extra ULP-coprocessor that can monitor GPIOs, the ADC channels
- and control most of the internal peripherals during deep-sleep mode
- while only consuming 25uA
Interfaces
- 2 x UART, 2 x SPI, I2C, I2S, micro SD card
- Analog channels: 8x12 bit ADCs
- Timers: 4x16 bit with PWM and input capture
- DMA on all peripherals
- GPIO: Up to 24
Hash / encryption
- SHA, MD5, DES, AES
WiFi Networking
- 802.11b/g/n 16mbps
Bluetooth
- Low energy and classic
RTC
- Running at 32KHz
Range
- Node range: Up to 50km
Security & Certifications
- SSL/TLS support
- WPA Enterprise security
- AES encryption engine
Memory
- RAM: 4MB
- Flash Memory: 8MB
- GPIO: Upto 24
- Hardware floating point
acceleration
- Python multi-threading
With Sigfox, WiFi and BLE, the S01 OEM Module is the latest
Pycom triple- bearer MicroPython enabled micro controller on
the market today – the perfect enterprise grade IoT platform
for your connected Things. With the latest Espressif chipset the
S01 offers a complete combination of power, friendliness and
flexibility. Create and connect your things everywhere. Fast.
S01 Features
- Powerful CPU, BLE and state of the art WiFi radio
- 1KM Wifi Range
- MicroPython enabled
- Fits in a standard breadboard (with headers)
- Ultra-low power usage: a fraction compared to other connected micro controllers
Processing
- Espressif ESP32 chipset
- Dual processor + WiFi radio System on Chip.
- Network processor handles the WiFi connectivity and the IPv6 stack
- Main processor is entirely free to run the user application
- An extra ULP-coprocessor that can monitor GPIOs, the ADC channels
and control most of the internal peripherals during deep-sleep mode
while only consuming 25uA
Interfaces
- 2 x UART, 2 x SPI, I2C, I2S, micro SD card
- Analog channels: 8x12 bit ADCs
- Timers: 4x16 bit with PWM and input capture
- DMA on all peripherals
- GPIO: Up to 24
Hash / encryption
- SHA, MD5, DES, AES
WiFi Networking
- 802.11b/g/n 16mbps
Bluetooth
- Low energy and classic
RTC
- Running at 32KHz
Range
- Node range: Up to 50km
Security & Certifications
- SSL/TLS support
- WPA Enterprise security
- AES encryption engine
Memory
- RAM: 4MB
- Flash Memory: 8MB
- GPIO: Upto 24
- Hardware floating point
acceleration
- Python multi-threading
