SE873
SE873Q5
GNSS - SE873/SE873Q5

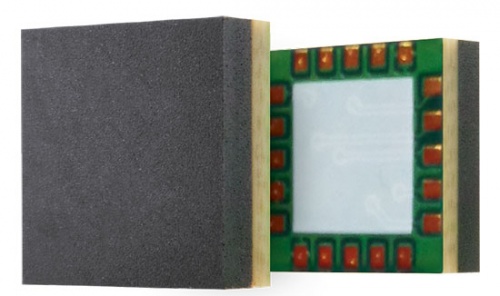

SE873
Small size: 7 x 7 x 1.85mm
Flash based for upgrades and customization
Autonomous and server based A-GNSS
Advanced power modes: smartGNSS, duty cycle, push-to-fix
GNSS-Feature-table.pdf
SE873Q5
Same interface, features and form factor of SE873
100% backward compatible with SE873
New lower power supply (switching) allowing - 25% reduction in power consumption
Sensitivity increased up to -167dBm in tracking
Model
SE873
SE873Q5
Power Consumption
Acquisition (mW)
101
96
Power Consumption
Navigation (mW)
94
77
Power Consumption
Hibernate (uW)
62
62
Sensitivity
Acquisition
-146
-147
Sensitivity
Tracking
-165
-167
GNSS-Feature-table.pdf
