Short Range RF BoB - tRF_BoB
" tRF BoB 70 " is a formative with a microBUS structure. It is an effective and easy solution for adding 868 MHz RF communication to your design.It features the " Telit LE70-868MHz " transceiver module, a SMA connector for an antenna also two radio communication( Tx - Rx ) LEDs. tBoB RF 70 communicates with the target board microcontroller via microBUS UART ( Rx, Tx), AN, RST, PWM and INT lines. It has a LED diode in order to power indicator.
Features :
*Range: Up to 10000 m
*Up to 128 kB Flash, 8kB RAM, 2 kB EEPROM
*32.768 kHZ RTC, 4 Timers
*Configurable output power
*5 I/0 Ports Max available
*Hayes mode or ‘AT’ mode for configuration
*Cyclic wake up: wakes up periodically and listens to the radio link
*For ultra low-power, low-latency applications.
*Download Over The Air (DOTA)
*Pre-certified RF modules, Header Form Factor
*Cyclic wake up: wakes up periodically and listens to the radio link
*PCB Dimensions: 47 x 25.4 mm
*Radio Data Rate: from 4.8 kbps to 57.6 kbps
*Transmit (Yellow) - Receive(Red) - Power(Green) LEDs
Applications :
*Telemetry
*Automated Meter reading
*Wireless Sensor Networks
*Home and Building Automation
*Wireless Alarm and Security Systems
*Industrial Monitoring and Control
*Long range Irrigation Systems

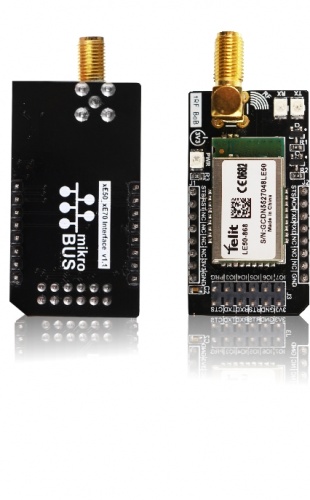

"tRF BoB 50" is a formative with a microBUS structure. It is an effective and easy solution for adding 868 MHz RF communication to your design.It features the Telit LE50-868MHz transceiver module,a SMA connector for an antenna also two radio communication( Tx - Rx ) LEDs. tBoB RF 50 communicateswith the target board microcontroller via microBUS UART ( Rx, Tx), AN, RST, PWM and INT lines.It has a LED diode in order to power indicator.
Features :
*Range: Up to 2000 m.
*Up to 128 kB Flash, 4kB RAM, 2 kB EEPROM.
*32.768 kHZ RTC, 4 Timers.
*Configurable output power.
*5 I/0 Ports Max available.
*Hayes mode or ‘AT’ mode for configuration.
*Cyclic wake up: wakes up periodically and listens to the radio link.
*For ultra low-power, low-latency applications.
*Download Over The Air (DOTA).
*Pre-certified RF modules, Header Form Factor
*Cyclic wake up: wakes up periodically and listens to the radio link
*PCB Dimension: 47 x 25.4 mm
*Radio Data Rate: from 4.8 kbps to115.2kbps
*Transmit (Yellow) - Receive(Red) - Power(Green) LEDs
Applications :
*Telemetry
*Automated Meter reading
*Wireless Sensor Networks
*Home and Building Automation
*Wireless Alarm and Security Systems
*Industrial Monitoring and Control
*Long range Irrigation Systems
"tRF BoB 50" is a formative with a microBUS structure. It is an effective and easy solution for adding 868 MHz RF communication to your design.It features the Telit LE50-868MHz transceiver module,a SMA connector for an antenna also two radio communication( Tx - Rx ) LEDs. tBoB RF 50 communicates with the target board microcontroller via microBUS UART ( Rx, Tx), AN, RST, PWM and INT lines. It has a LED diode in order to power indicator.
Features :
*Range: Up to 2000 m
*Up to 128 kB Flash, 8kB RAM, 2 kB EEPROM
*32.768 kHZ RTC, 4 Timers
*Configurable output power
*5 I/0 Ports Max available
*Hayes mode or ‘AT’ mode for configuration
*Cyclic wake up: wakes up periodically and listens to the radio link
*For ultra low-power, low-latency applications.
*Download Over The Air (DOTA)
*Pre-certified RF modules, Header Form Factor
*Cyclic wake up: wakes up periodically and listens to the radio link
*PCB Dimension: 47 x 25.4 mm
*Radio Data Rate: from 2.4 kbps to 100 kbps
*Transmit (Yellow) - Receive(Red) - Power(Green) LEDs
Applications :
*Telemetry
*Automated Meter reading
*Wireless Sensor Networks
*Home and Building Automation
*Wireless Alarm and Security Systems
*Industrial Monitoring and Control
*Long range Irrigation Systems
