PYCOM Products - Development Boards

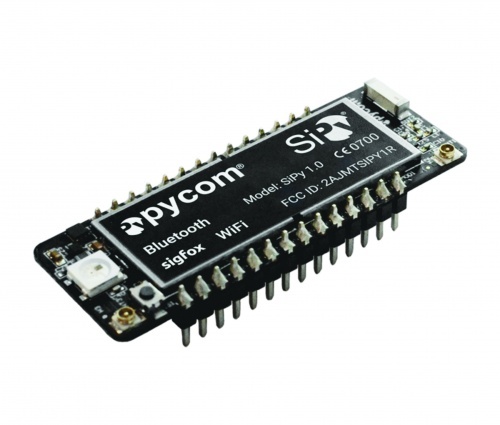

SiPy

SiPy Features

  • Powerful CPU, BLE and state of the art WiFi radio
  • 1KM WiFi range
  • MicroPython enabled
  • Fits in a standard breadboard (with headers)
  • Ultra-low power usage: a fraction compared to other connected micro controllers

Processing

  • Espressif ESP32 chipset
  • Dual processor and WiFi radio system on chip
  • Network processor handles the WiFi connectivity and the IPv6 stack
  • Main processor is entirely free to run the user application
  • An extra ULP-coprocessor that can monitor GPIOs, the ADC channels and
    control most of the internal peripherals during deep-sleep mode while only
    consuming 25uA

Sigfox Operating Frequencies

  • RCZ1 – 868MHz (Europe)
  • RCZ2 – 902MHz (US, Canada and Mexico)
  • RCZ3 – (Japan and Korea)
  • RCZ4 – 920-922MHz (ANZ, Latin America and S-E Asia)

Interfaces

  • 2 x UART, 2 x SPI, I2C, I2S, micro SD card
  • Analog channels: 8×12 bit ADCs
  • Timers: 4×16 bit with PWM and input capture
  • DMA on all peripherals
  • GPIO: Up to 24

Hash / Encryption

  • SHA, MD5, DES, AES

WiFi Networking

  • 802.11b/g/n 16mbps

Bluetooth

  • Low energy and classic

RTC

  • Running at 32KHz

Range

  • Node range: Up to 50km

Security & Certifications

  • SSL/TLS support
  • WPA Enterprise security
  • AES encryption engine

Memory

  • RAM: 512kb
  • Flash Memory: 4MB
  • GPIO: Up to 24
  • Hardware floating point acceleration
  • Python multi-threading

Sigfox Specification

  • TI CC1125NarrowbandTransceiver
  • Class 0 device. Maximum Tx power:

+14dBm (Europe)
+22dBm (America)
+22dBm (Australia and New Zealand)

  • Node range: Up to 50km
  • Sigfox pre-certified (October 2016)

Power

  • Voltage Input: 3.3V – 5.5V
  • 3v3 output apable of sourcing up to 400mA
  • WiFi: 12mA in active mode, 5uA in standy
  • Sigfox (Europe): 17mA in Rx mode, 47mA in Tx mode and 0.5uA in standby
  • Sigfox (Australia, New Zealand and South America): 24mA in Rx mode, 257 mA in Tx mode and 0.5uA in standby

Size

  • 55mm x 20mm x 3.5mm (Without Headers)

Weight

  • 7g
  • 31g (Packaged)

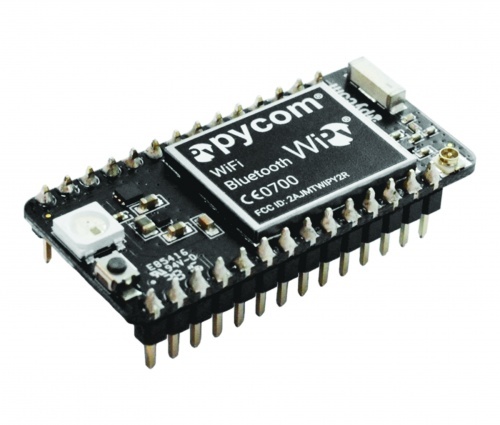

WiPy 2.0

Features

  • Powerful CPU, BLE and state of the art WiFi radio
  • 1KM WiFi range
  • MicroPython enabled, the Linux of IoT for fast deployment
  • Fits in a standard breadboard (with headers)
  • Ultra-low power usage: a fraction compared to other connected micro
    controllers

Processing

  • Espressif ESP32 chipset
  • Dual processor + WiFi radio system on chip
  • Network processor handles the WiFi connectivity and the IPv6 stack
  • Main processor is entirely free to run the user application
  • An extra ULP-coprocessor that can monitor GPIOs, the ADC channels and
    control most of the internal peripherls during deep-sleep mode while
    onlyconsuming 25uA

Interfaces

  • 2 x UART, 2 x sPI, I2C, I2S, micro SD card
  • Analog channels: 8×12 bit ADCs
  • Timers: 4×16 bit with PWM and input capture
  • DMA on all peripherals
  • GPIO: Up to 24

Hash/Encryption

  • SHA, MD5, DES, AES

WiFi

  • 802.11b/g/n 16mbps

Bluetooth

  • Low energy and classic

RTC

  • Running at 32KHz

Power

  • 3.3V to 5.5V
  • 3V3 output capable of sourcing up to 550mA

Security & Certifications

  • SSL/TLS support
  • WPA Enterprise security
  • FCC – 2AJMTWIPY2R
  • CE 0700

Memory

  • RAM: 512KB
  • External flash: 4MB
  • Hardware floating point acceleration
  • Python multi-threading

Size

  • 42mm x 20mm x 2.5mm (excluding headers)

Weight

  • 5g
  • 29g (Packaged)

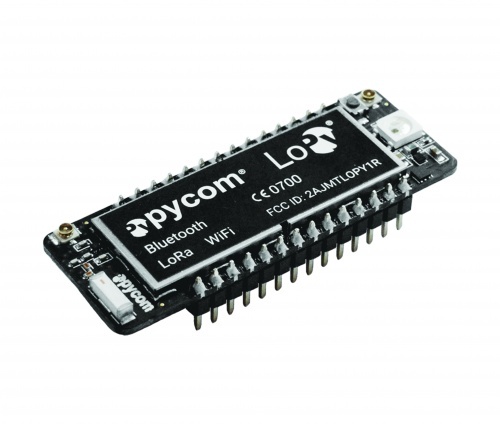

LoPy

LoPy Features

  • Powerful CPU, BLE and state of the art WiFi radio. 1KM Wifi Range
  • Can also double up as Nano LoRa gateway
  • MicroPython enabled
  • Fits in a standard breadboard (with headers)
  • Ultra-low power usage: a fraction compared to other connected micro controllers

Processing

  • Espressif ESP32 chipset
  • Dual processor + WiFi radio System on chip
  • Network processor handles the WiFi connectivity and the IPv6 stack
  • Main processor is entirely free to run the user application
  • An extra ELP-coprocessor that can monitor GPIOs, the ADC channels and
    control most of the internal peripherals during deep-sleep mode while
    only consuming 25uA

Operating Frequencies

  • 868 MHz (Europe) at +14dBm maximum
  • 915 MHz (North and South America, Australia and New Zealand) at +20dBm maximum

Range Specification

  • Node range: Up to 40km
  • Nano-gateway: Up to 22km
  • Nano-gateway capacity: Up to 100 nodes

Interfaces

  • 2 x UART, 2 x SPI, I2C, I2S, micro SD card
  • Analog channels: 8×12 bit ADCs
  • Timers: 4×16 bit with PWM and input capture
  • DMA on all peripherals
  • GPIO: Up to 24

Security & Certifications

  • SSL/TLS support
  • WPA Enterprise security
  • FCC – 2AJMTLOPY2R
  • CE 0700

Memory

  • RAM: 512KB
  • External flash: 4MB
  • Hardware floating point acceleration
  • Python multi-threading

Hash / encryption

  • SHA, MD5, DES, AES

WiFi

  • 802.1b/g/n 16mbps

Bluetooth

  • Low energy and classic

RTC

  • Running at 32KHz

Power

  • Input: 3.3V – 5.5V
  • 3v3 output capable of sourcing up to 400mA
  • WiFi: 12mA in active mode, 5uA in standby
  • LoRa: 15mA in active mode, 1-uA in standby

LoRa Specification

  • Semtech LoRa transceiver SX1272
  • LoRaWAN stack
  • Class A and C devices

Size

  • 55mm x 20mm x 3.5mm (Without Headers)

Weight

  • 7g
  • 31g (Packaged)
FiPy

FiPy Features

  • Powerful CPu
  • Five networks: WiFi, BLE, cellular LTE-CAT M1/NB1, LoRa and Sigfox
  • 1KM WiFi range
  • MicroPython enabled
  • Fits in a standard breadboard (with headers)
  • Ultra-low power usage: a fraction compared to other connected microcontrollers

Processing

  • Espressif ESP32 SoC
  • Dual processor and WiFi radio system on chip
  • Networking processor handles the WiFi connectivity and the IPv6 stack
  • Main processor is entirely free to run the user application
  • An extra ULP-coprocessor that can monitor GPIOs, the ADC channels and
    control most of the internal peripherals during deep-sleep mode while
    only consuming 25uA

Interfaces

  • 2 x UART, 2 x SPI, I2C, micro SD card
  • ANalog channels: 8×12 bit ADCs, 2×8 bit DAC
  • Timers: 2×64 bit with PWM with up to 16 channels
  • DMA on all peripherals
  • GPIO: Up to 22

Hash / Encryption

  • SHA, MD5, DES, AES

WiFi Networking

  • 802.11b/b/n 16mbps

Bluetooth

  • Low energy and classic

RTC

  • Running at 32KHz

Range

  • Node range: Up to 50km

Security & Certifications

  • SSL/TLS support up to 1.2
  • WPA Enterprise security
  • AES encryption engine

Memory

  • RAM: 4MB
  • Flash Memory: 8MB
  • GPIO: Up to 22
  • Hardware floating point acceleration
  • Python multi-threading

Power

  • Voltage Input: 3.3V – 5.5V
  • 3v3 output capable of sourcing up to 400mA

Size

  • 55m x 20mm x 3.5mm (Without Headers)

Weight

  • 7g
  • 31g (Packaged)
