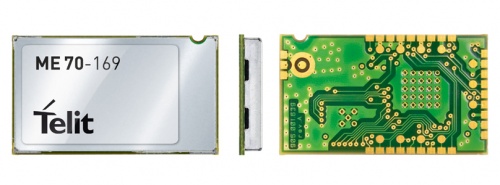

Wireless M-Bus - ME70-169

The Telit ME70-169 is a CE certified wireless M-Bus module compliant with the EN13757 part 4 2013 wireless M-Bus standard. The ME70-169 operates in the 169 MHz band and runs Wireless M-Bus N mode protocols, defined by EN13757-4 2013 for this band.
It is ideally suited for use in one or two-way data links with gas, water, heat and electricity meters and concentrators.

FAMILY CONCEPT

The ME70 family is delivered with an in-house embedded Telit Wireless M-Bus stack that allows the customer to use the modules as a simple, ready-to-use modem, using AT commands over UART.
Modules are CE certified with an LGA xE Form Factor, TTL RS232 interface and operate across the industrial temperature range.

KEY FEATURES

• Tx power up to 1W with sensitivity up to -119 dBm
• Power consumption of less than 1.5 μA in sleep mode with an RTC clock running
• Pin to Pin compatible with other Wireless M-BUS products (ME50-868) and with ZE51/61 (Zigbee PRO)
