3G BoB - xL865_BoB

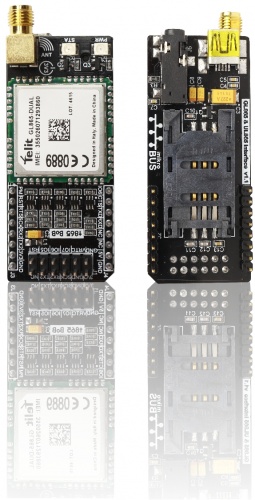

"t865 BoB " is a formative with a microBUS structure. It is an effective and easy solution for adding GSM/GPRS solutions into your design. It features the Telit GL865-DUAL or UL865-EUR module, a SMA connector for an antenna, a SIM CARD socket. tGSM BoB communicates with the target board microcontroller via microBUS ( Rx, Tx, Rx2, Tx2, RTS, CTS, Reset, GPIOs ). Only for UL865-EUR Module, has USB Port. The Audio Connector is compatible with Iphone, Samsung, HTC headsets. It has two LED  diodes  for  power indicator and status.

Features:

*Band:

900 / 1800  MHz @ BoB_2G

850 / 900 / 1800/1900 /2100 MHz @ BoB_3G

*Control via AT commands:

GSM 27.005 ,27.007 and Telit custom AT Commands

*Embedded Programming:

Python 1.5.2 @ BoB_2G

Python 2.7 @ BoB_3G

*Interfaces: SIM, 2 UART, Antenna, Analog & Digital Audio( @ BoB_2G )

*3 GPIO Ports available

*FOTA (Firmware Over the Air)

*Header Form Factor

*PCB Dimension: 58.20  x  25.4 mm

*Power (Green) - Status(Red) LEDs

Telemetry:

*M2M ( Machine to Machine ) Systems

*Wireless Sensor Networks

*Home and Building Automation

*Wireless Alarm and Security Systems

*Industrial Monitoring and Control

*Irrigation Systems

*Temperature and Humidity Tracking Systems.
