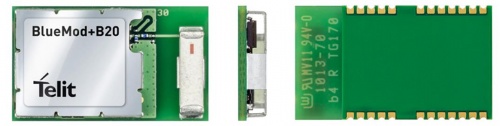

Bluetooth & NFC - BlueMod +B20 (Bluetooth classic)

BlueMod+B20/BT2.1 is not recommended for new designs!

The BlueMod+B20/BT2.1 is an embedded Class 2 module with an integrated antenna and a range of 60 m (line of sight). BlueMod+B20/BT2.1 is a qualified Bluetooth 2.1+EDR product, meaning that you can use it without having to re-qualify your product. It is CE, FCC, IC and MIC certified.

The BlueMod+B20/BT2.1 has a serial UART interface for integration into your system. It features a configurable connection setup, which can be set to reduce connection setup time or to minimize power consumption.

KEY FEATURES

• Industrial class serial Bluetooth module
• Class 2 (up to 60 m)
• Enhanced Data Rate
• Solder-on installation
• Integrated antenna or antenna pin versions
• Interference-free co-location and co-existence with 802.11 (AWMA, AFH, and SFH)
• Profiles: SPP, HID, HCI, Obex
• Developed and manufactured in Germany

FIRMWARE VERSIONS
SPP/HID/Obex:

• Serial Port Profile (SPP). For wireless cable replacement applications. ~300 kbps sustained SPP net data rate.
• Human Interface Device Profile (HID). For use in mouse and keyboard devices.
• OBject EXchange (Obex) for serial communication with mobile devices.

Host Controller Interface (HCI):

Standard HCI over UART or USB for use with Bluetooth Host Stacks, like BlueCode+
