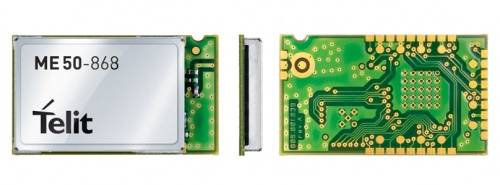

Wireless M-Bus - ME50-868

ME50-868 is a 868 MHz wireless module that combines high performance to small dimensions and low cost, providing the system integrator a simple and easy way to add Wireless M-Bus connectivity. It is ideally suited for use in one or two-way data links and metering data collection from gas, heat, water or other meters.

FAMILY CONCEPT

The ME50 family is delivered with an in-house embedded Telit Wireless M-Bus stack that allows the customer to use the modules as a simple, ready-to-use modem, using AT commands over UART.
Modules are CE certified with an LGA xE Form Factor, TTL RS232 interface and operate across the industrial temperature range.

KEY FEATURES

• Tx power up to 25mW with sensitivity up to -109 dBm
• Power consumption of less than 1.5 μA in sleep mode with an RTC clock running
• Download over the Air (DOTA)
