SL871-S
SL871L-S
GPS - SL871-S/SL871L-S

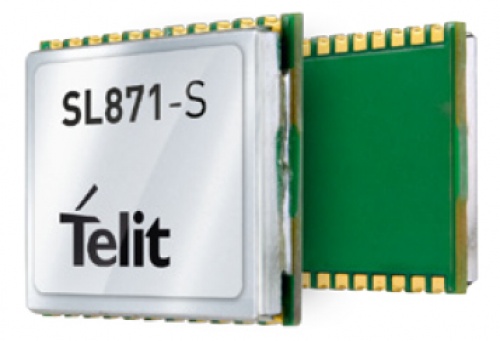

SL871-S
Compliant with GPS and GLONASS standards
Compliant with Compass / BeiDou
Ready for GNSS constellations under deployment: QZSS, Galileo and Compass
Embedded LNA allows use of passive antennas
Supports ephemeris file injection (A-GPS)
GNSS-Feature-table.pdf

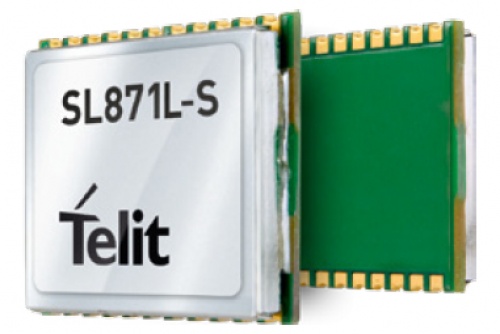

SL871L-S
Compliant with GPS and QZSS standards
Additional DC block for direct input from active antennas
Additional LNA for improved sensibility and faster TTFF
A-GPS ephemeris file injection
Model
SL871
SL871L
SL871-S
SL871L-S
Constellations
GPS/QZSS
x
x
x
x
Constellations
GLONASS, Galileo, BeiDou
x
x
Interfaces
Serial Port
UART + UART (or I2C)
UART + UART (or I2C)
UART + UART
UART + UART
Features
LNA + DC Block
x
x
Features
Flash
x
x
161128_DS_JUPITER_SL871-S_Rev02.pdf
1VV0301170_SL871_Family_Product_User_Guide_r4.pdf
Telit_AGPS_EPO_Sample_Code_NDA_request.pdf
Telit_Client_EPO_Server_App_Note_r0.pdf
Telit_Jupiter_MT_GNSS_Host_Flash_Application_Note_r2.pdf
Telit_Jupiter_MT33xx_Host_EPO_Application_Note_r1_1_.pdf
Telit_Jupiter_SL871L-S_Datasheet_Rev01.pdf
Telit_Jupiter_SL871L-S_Datasheet_Rev01.pdf
Telit_MT_GNSS_Authorized_Software_User_Guide_r2_NDA_request.pdf
Telit_MT_GNSS_User_Guide_r3.pdf
Telit_SGEE-EPO_Application_Note_r2.pdf
Telit_SL871_SL869-V2_Families_EVK_User_Guide_r1.pdf
TelitView_2.1.6.zip
GNSS-Feature-table.pdf
Brochure
